BOE 23.8inch Medical Imaging LCD Panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V

FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BOE 23.8inch Medical Imaging LCD Panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V

Brand Name : BOE

Model Number : EV238FHM-N10

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : USD48/PC

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass oled

color : 16.7M colors

model : lcm

style : wide screen high resolution 1080*1920Pixels

brightness : 300cd

connector : 30PIN

contrast ratio : 1000:1

working time : 30k hours

screen size : 23.8inch

Contact Now

BOE 23.8inch Medical imaging lcd panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V
EV238FHM-N10 is a 23.8" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Matte , TCO 6.0, ES6.0 compliant. Based on its features, einklcd recommend that this model be applied to Medical Imaging etc. According to the information stored in einklcd this model mass production on Q4, 2015, Now this model is discontinued. T We inputted this model's specification on Sep 10 2019 for the first time, and the latest update on Aug 5 2023. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of EV238FHM-N10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand BOE
Model P/N:EV238FHM-N10
Diagonal Size: 23.8"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 92PPI
Pixel Format: RGB Vertical Stripe
Active Area 527.04(W)×296.46(H) mm
Bezel Opening 530.2(W)×299.6(H) mm
Outline Size:543.1(W)×317.5(H) ×11.4(D) mm
Brightness: 300 cd/m² (Typ.)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on Symmetry
Display Colors 16.7M 100% sRGB
Frequency: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Weight: 2.39Kgs (Typ.)
Surface: Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio: 1000:1 (Typ.) (TM)
Display Mode: ADS, Normally Black, Transmissive IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Response Time: 14 (Typ.)(G to G)
Lamp Type: 3 strings WLED , 30K hours , Without Driver
Touch Screen:without
Application: Medical Imaging
Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C
BOE 23.8inch Medical Imaging LCD Panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V

Product Tags:

EV238FHM-N10 Medical LCD Panel



23.8inch Medical LCD Panel



Medical Imaging LCD Panel


China BOE 23.8inch Medical Imaging LCD Panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V wholesale

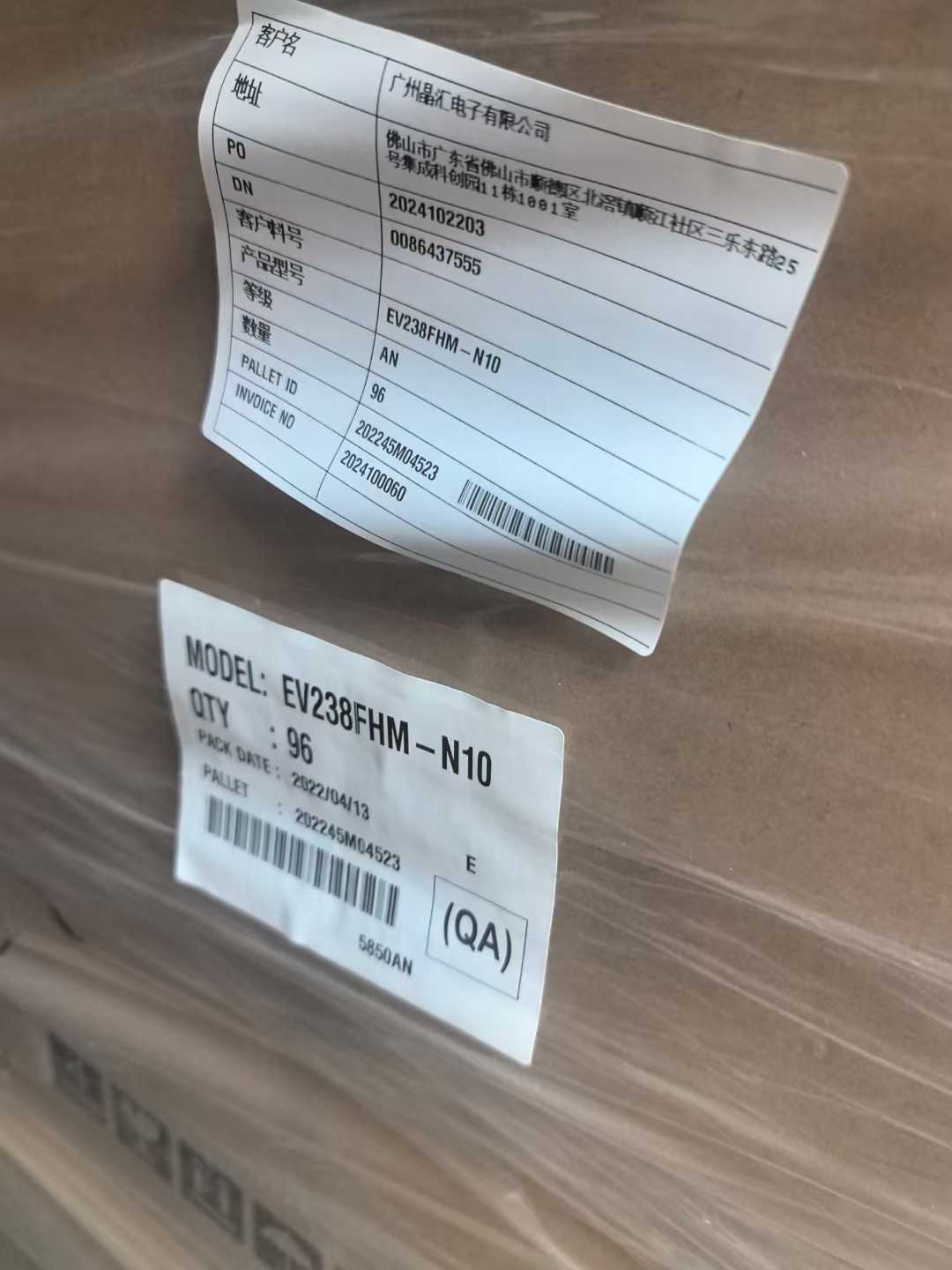

BOE 23.8inch Medical Imaging LCD Panel EV238FHM-N10 1920*1080Pixels 92ppi 300CD/M2 30pin 5.0V Images
