BOE 10.5inch Laptop display model NV105WAM-N31 Pad lcd screen 1920x1280Pixels 219PPI 50PIN
Brand:BOE
Model P/N: NV105WAM-N31
Diagonal Size:10.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution1920(RGB)×1280 219PPI Pixel
Format: RGB Vertical Stripe
Active Area: 222.048(W)×148.032(H) mm
Bezel Opening-
Outline Size :227.048(W)×157.732(H)×4.5(D) mm
Treatment: Hard coating (2H)
Luminance :420 cd/m² (Typ.)
Contrast Ratio 1500 : 1 (Typ.) (TM)
Viewing Angle - Response 30 (Max.)(Tr+Td), 50 (Max.)(G to G) ms
Good View at Symmetry
Work Mode ADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Color Depth 16.7M 100% Adobe RGB
Backlight 9S5P WLED , 15K hours , No Driver
Outline Shape Slim (PCBA Bent, T≤3.0mm) Used for Laptop Pad & Tablet
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen :Without
Signal Type eDP (2 Lanes) , eDP1.4a , HBR1 (2.7G/lane) , 50 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
BOE Technology Group Co., Ltd. (hereafter called BOE) NV105WAM-N31 (Product Code: BOE088B) is a 10.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight , eDP1.4a, PSR2+LRR, BIST, G-sync, Instant on. Based on its features, Einklcd recommend that this model be applied to Laptop, Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q1, 2020, Now this model is in production. We inputted this model's specification on Dec 17 2020 for the first time, and the latest update on Sep 5 2023. If you want to embed NV105WAM-N31 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The NV105WAM-N31 production status marked on Einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Product Tags:
|
|

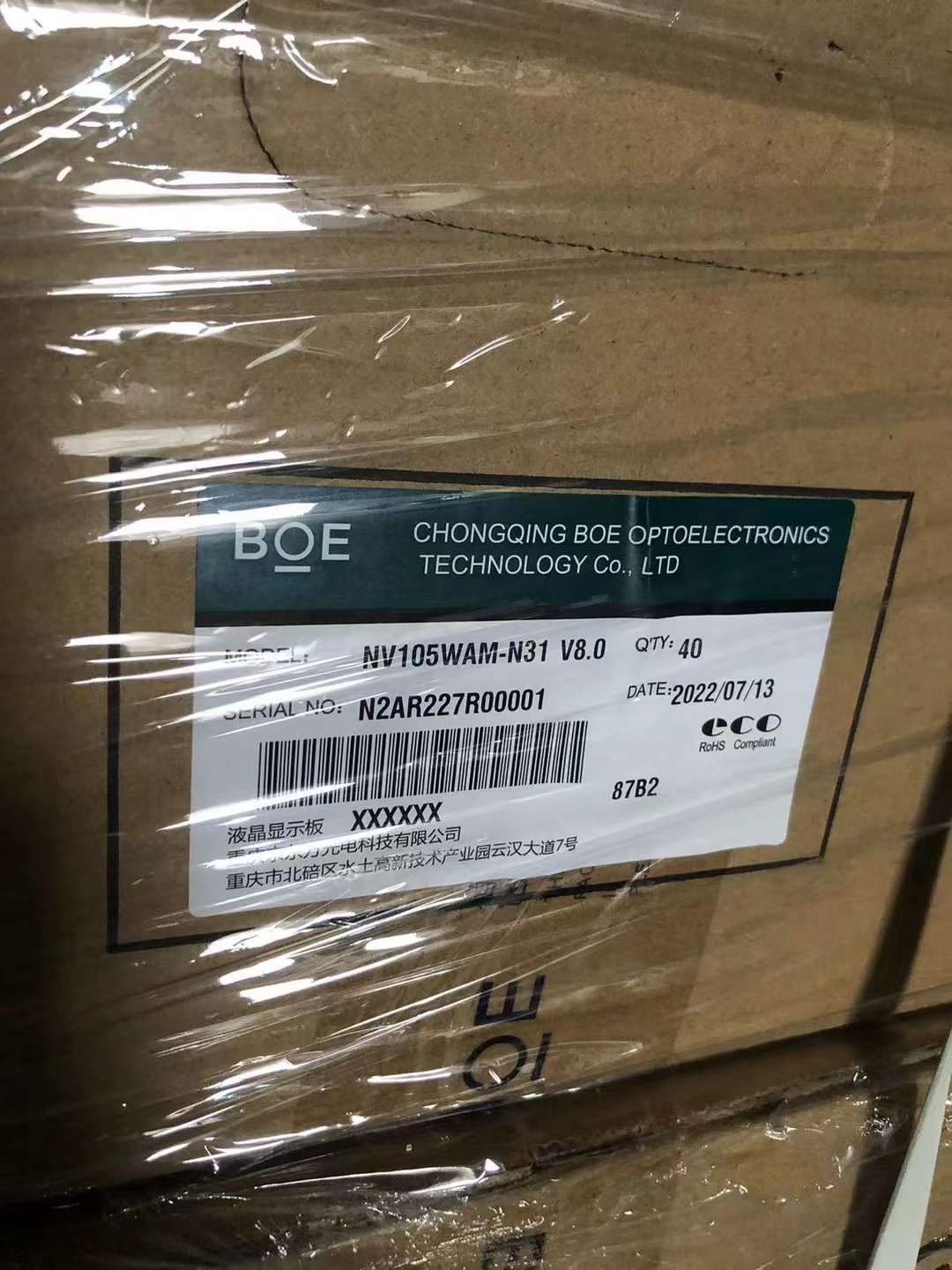

BOE 10.5inch NV105WAM-N31 Pad LCD Screen 1920x1280 Pixels 219PPI 50PIN for Laptop Images
|
