Innolux 31.5inch Desktop monitor M315DJJ-K30 laptop lcd screen 3840x2160Pixels 139PPI 51PIN
The M315DJJ-K30 is a 32.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: DCI-P3, sRGB, WLED Backlight, Reverse I/F, 10 bit, Matte, AMD FreeSync , DCI-P3. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q1, 2015, Now this model is discontinued. We inputted this model's specification on Mar 24 2015 for the first time, and the latest update on Aug 31 2023. If you want to embed M315DJJ-K30 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The M315DJJ-K30 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:Innolux
Model P/N: M315DJJ-K30
Diagonal Size:32.0"
Panel Type:a-Si TFT-LCD, LCM
Resolution:3840(RGB)×2160, UHD 139PPI
Pixel Format:RGB Vertical Stripe
Active Area: 698.4(W)×392.85(H) mm
Bezel Opening:703.4(W)×397.85(H) mm
Outline Size :717.4(W)×413.85(H)×18.9(D) mm
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance :300 cd/m² (Typ.)
Contrast Ratio 3000 : 1 (Typ.) (TM)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 9.5 (Typ.)(G to G) ms
Good View at Symmetry Work Mode MVA, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Color Depth 1.07B 98% DCI-P3 Backlight 4 strings WLED , 30K hours , No Driver
Mass 3.46±0.18Kgs Used for Desktop Monitor
Refresh Rate :60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touchscreen Without
Signal Type V-by-One 8 lane , 51 pins Connector
Voltage Supply :12.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
Product Tags:
|
|

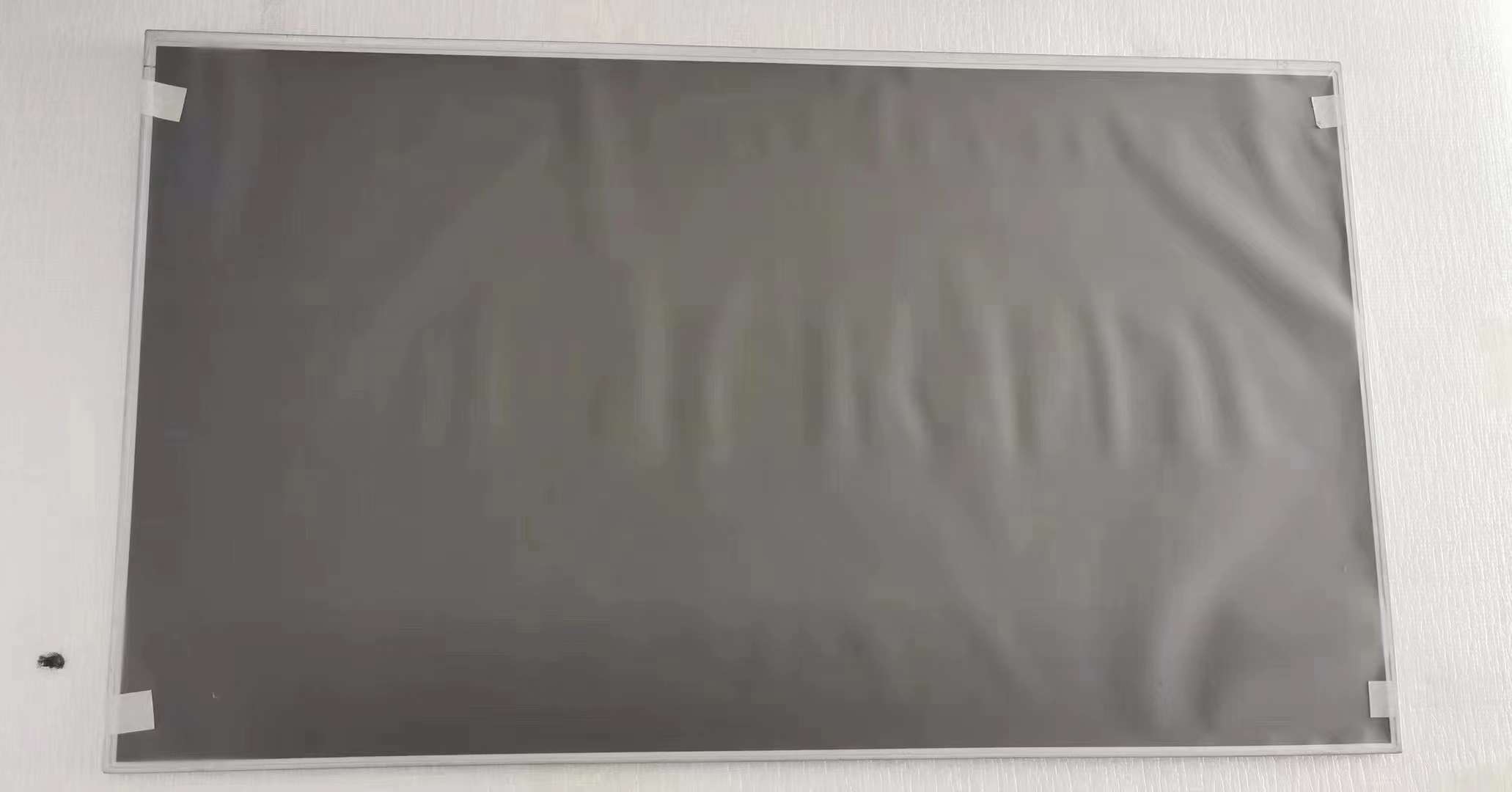

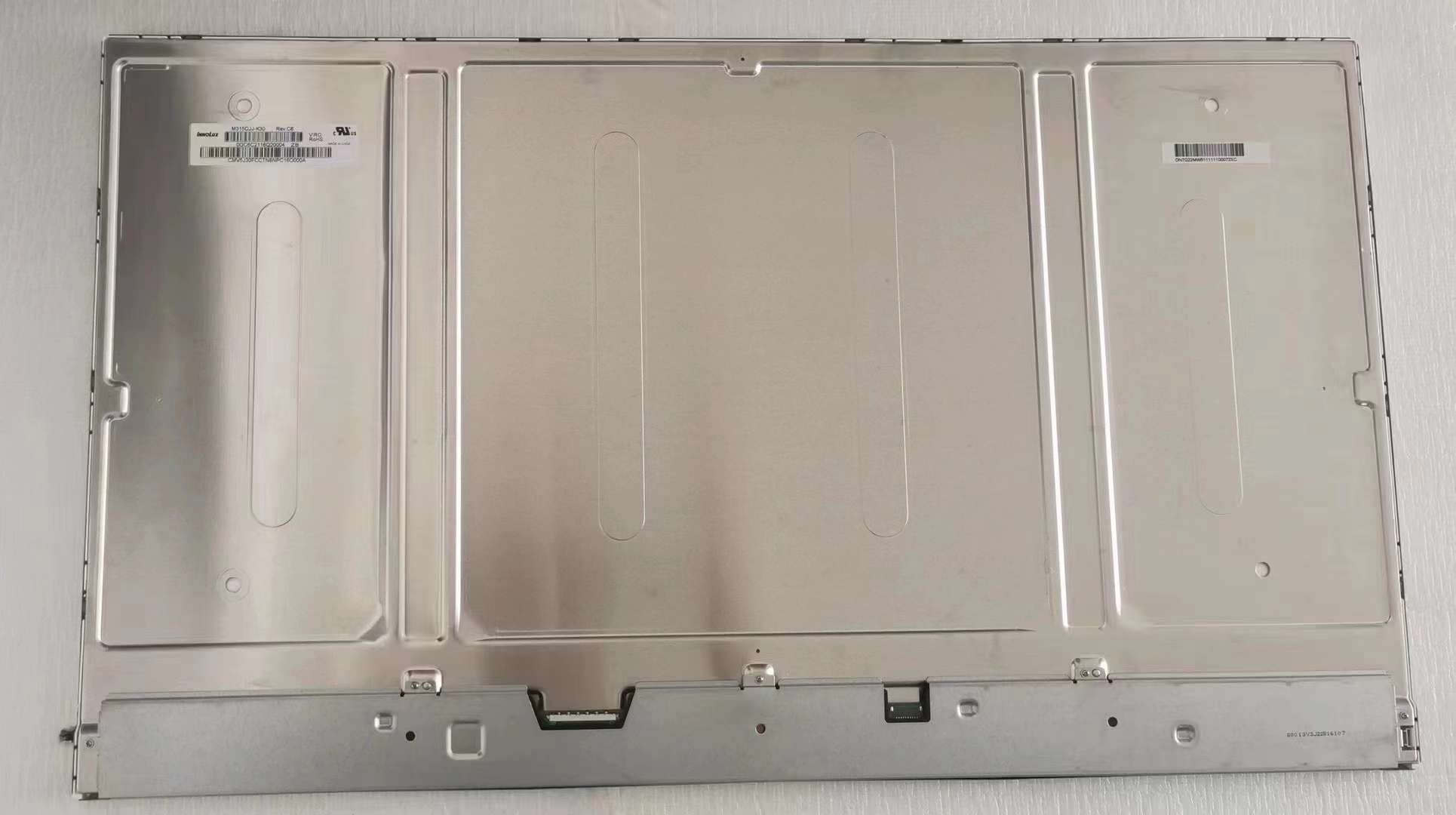

Innolux 31.5inch Desktop Monitor M315DJJ-K30 Laptop Lcd Screen 3840x2160Pixels 139PPI 51PIN 12V Voltage Supply Images
|
